Self-Adhesive Pile · Foam-Carrier Tape

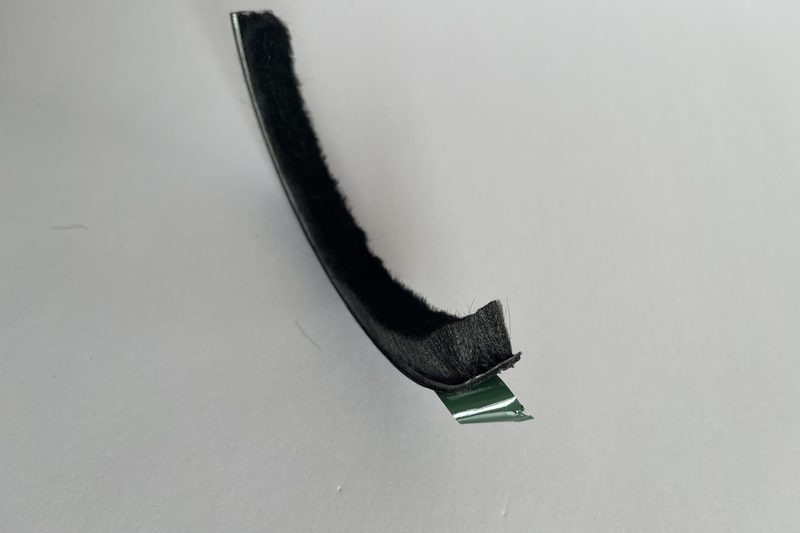

The standard 0.6 mm backing carried on a 1 mm foam tape, coated with adhesive on both faces, under a release liner. It mounts to a flat surface, so it does not need an extrusion channel to hold it.
Made to order Backing width, pile height, fin, colour — all specified by you. Standard sizes ship from stock; non-standard is the larger half of what we run.
Made to your channel, not ours
The two dimensions called out on that drawing are both yours to set. Adhesive grade and liner are specified to the surface you are sticking to. Painted aluminium, bare uPVC and powder coat do not behave the same.
No tooling charge
- Pile height
- Anything from 2.5 mm upward
- Fin or no fin
- Added or removed on any construction
- Silicone treatment
- On or off, on any construction
- Put-up
- Spool length and core to suit your line
Quoted once, credited back
- Colour
- Multiple standard; custom matched on request
- Non-standard backing width
- Tooling quoted once, credited against your production orders
- Non-standard backing profile
- Same terms. The tooling stays reserved to your part number
Send a drawing or send a physical piece — both are accepted, and the tooling we cut for you stays reserved to your part number. Large suppliers sell from a fixed catalogue and treat a non-standard size as an inconvenience. We were built the other way round.
Why this construction
Retrofit work almost never has a channel to slide into. The foam carrier lets the tape take up the small steps and waviness in an existing frame that a thin adhesive film would bridge instead of sticking to. It is the cheaper of our two adhesive systems; the trade-off is that foam is the weakest part of the stack, so for a surface that is already flat and for a bond meant to last, the acrylic transfer tape holds better.
Where it is used
- Retrofit and repairExisting windows and doors with no slot.
- Aftermarket and retail packsSold by the roll to end users.
- Shopfitting and cabinetrySliding panels and display cases.
- Garage door side sealsApplied to the jamb rather than into a track.
Sizes
Ranges below apply to this line. The full backing-width table, with the U.S. nominal each size sits against, is on the specifications section of the home page.
| Attribute | Range |
|---|---|
| Backing width | 4.5 – 11.0 mm (0.177″ – 0.433″) |
| Pile height | from 2.5 mm (0.098″) upward |
| Pile material | Polypropylene |
| Colours | Multiple standard; custom on request |
| Dimensional tolerance | ±0.15 mm |
| Standard spool length | Made to your put-up — tell us the run length |
| Minimum order quantity | Scales with price — small runs welcome, quoted per volume |
| Sample lead time | 15 days on existing tooling; 30 days if a new backing profile has to be cut |
| Production lead time | 15 days ex-works on a first order, from receipt of deposit. U.S. contract volumes have run 30–45 days. Add 10 days if the filament colour has to be spun to order. |
How to specify it
Four things get you a quote and a matched sample. If you only have two of them, send two.
- The backing width you runGive it however you have it — .270″, 7 mm, or the die drawing. We convert.
- The pile height you needOr the gap you are sealing, if the height was never specified.
- Fin or no finAnd silicone treatment or not. These are the two that change the part number.
- Annual volume and colourRough is fine. It decides the run size, not the price of the sample.
